Quantization Basics

Quantization is the process to reduce the precision of the data types used in machine learning models. It involves mapping continuous or high-precision values (fp32 or bf16) to a smaller, discrete set of low-precision values (int8, fp8, or lower). Quantization can be applied to model params (weights and biases) as well as activations.

The primary goals of quantization are:

• Reduce Model Size: Lower-precision numbers require less memory or storage space. An int8 model is roughly 4x smaller than its fp32 counterpart. This allows models to be fit in devices with limited memory.

• Increase Inference Speed: Computations with integers are often significantly faster on many hardware platforms (CPUs, GPUs, specialized accelerators like TPUs/NPUs) than floating-point computations.

Applying quantization is a trade-off since it has a negative impact on the model quality. Fortunately, with various techniques such as QT, we could usually preserve the majority of the model capability.

Categories

Quantization algorithms can be generally divided into the following 3 categories from the least aggressive to the most. The more aggressive quantization brings more performance gains and more quality loss.

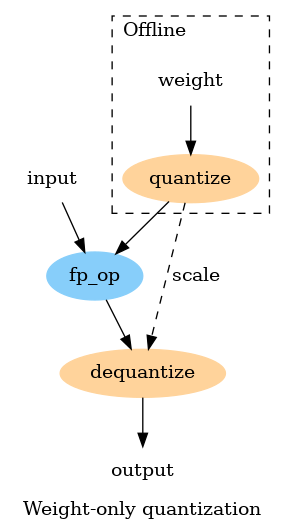

Weight-only quantization

As the name suggests, this technique focuses only on quantizing the model’s weights to a lower precision format. The activations remain in their original higher precision.

Since weights are static during inference, they can be quantized offline ahead of time. If the hardware supports mixed precisions of the inputs, quantized weights can be consumed directly. Otherwise, they are dequantized on the fly during inference.

The model’s FLOP doesn’t get fewer since the computation is still in floating-point. However, performance could still get improved if the memory bandwidth is the bottleneck. The reduced memory footprint also allows larger batch size or fewer model shardings.

In Qwix, weight-only quantization can be enabled by setting act_qtype to None.

# This enables int8 weight-only quantization.
qwix.QuantizationRule(
    weight_qtype="int8",
    act_qtype=None,
)

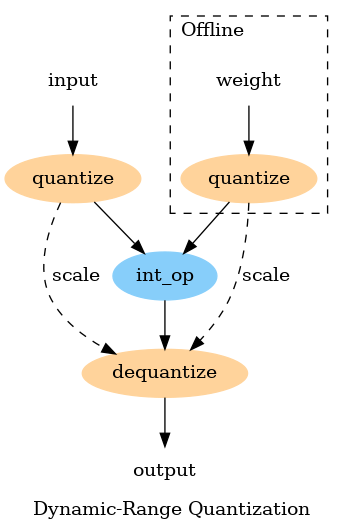

Dynamic-Range Quantization (DRQ)

This technique quantizes the weights offline (similar to weight-only), and also quantizes the activations dynamically during the inference process. The quantized types of weights and activations don’t need to be the same.

A activation is quantized using a dynamic scale calculated from the activation itself, which is optimal. This means there’s an additional cost of calibrating the activation to get the scale. If the activation is sharded, this could trigger a cross-device collective which can be expensive. Subchannel quantization is usually necessary in this case to mitigate the collective.

In Qwix, DRQ can be enabled by setting act_qtype to a non-None value.

# This uses int4 for weights and int8 for activation.
qwix.QuantizationRule(
    weight_qtype="int8",
    act_qtype="int8",
)

Static-Range Quantization (SRQ)

This technique is similar to dynamic-range quantization that both weights and activations are quantized. The difference is activations are quantized using static scales. This requires additional calibration data to be collected during QAT or a standalone calibration process.

SRQ has the best performance and is usually required for ODML targets. It also has the most significant impact on the model’s quality.

In Qwix, SRQ can be enabled by setting both the act_qtype and act_static_scale.

# This enables int8 SRQ.
qwix.QuantizationRule(
    weight_qtype="int8",
    act_qtype="int8",
    act_static_scale=True,
)
