ODML Quantization

A distinct feature of Qwix is its ODML support. It’s able to quantize every op, perform QAT, and export full-integer LiteRT models.

XLA targets vs ODML targets

Quantization for XLA targets and ODML targets are different due to their different hardware characteristics. XLA devices are more versatile and powerful, as they are also designed for training. Quantizing the matmul and convolution ops is usually sufficient for these platforms; quantizing the remaining element-wise ops typically offers negligible benefits.

In contrast, ODML devices are inexpensive and have diverse runtimes specifically for quantized inference. Quantized inputs with static ranges are usually required by kernels in those runtimes, and they generate quantized outputs with static ranges too. Some of those runtimes lack floating point MXUs, necessitating static quantization for every operator. Fusion is also common in ODML runtimes. For example, a matmul kernel can often fuse the subsequent addition and ReLU.

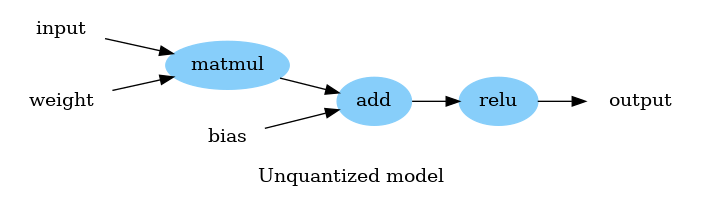

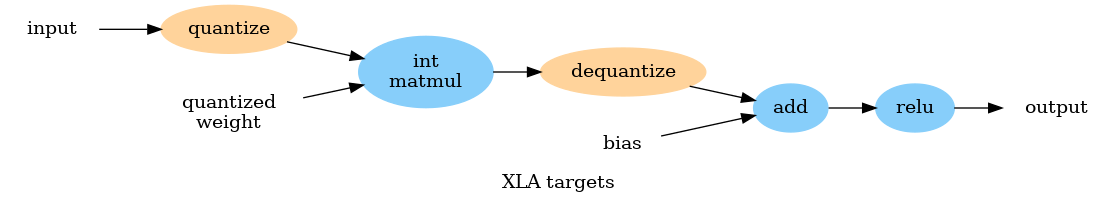

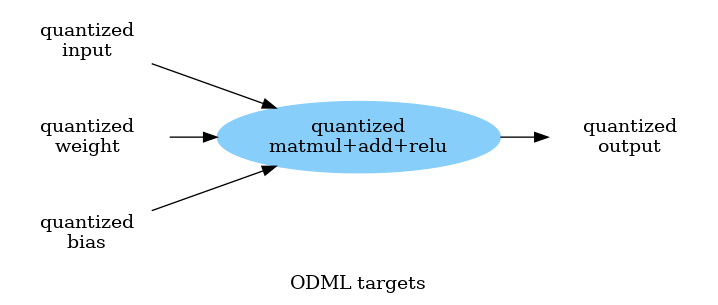

The illustration shows how a dense layer is quantized differently on XLA targets vs ODML targets.

The other difference is how the models get deployed. For XLA targets, models are either served directly in Python, or exported as saved models. Quantization is completely done in the framework. For ODML targets, models need to undergo LiteRT conversion, which allows transforming the graph for quantization. The transformation during the conversion is more powerful as it has access to the whole graph and can perform propagation and fusion easily. However, the framework must provide enough annotations in the graph for the converter, where a protocol is needed between the framework and the ODML converter.

ODML quantization with Qwix

ODML quantization in Qwix is implemented by OdmlQatProvider and OdmlConversionProvider. Asymmetric static-range quantization is enabled by default for ODML targets.

rules = [
    qwix.QuantizationRule(
        weight_qtype='int8',
        act_qtype='int8',
    )
]

ODML QAT

In quantization-aware training (QAT), weights are still kept floating-point. Both weights and activations are quantized dynamically inside the ops.

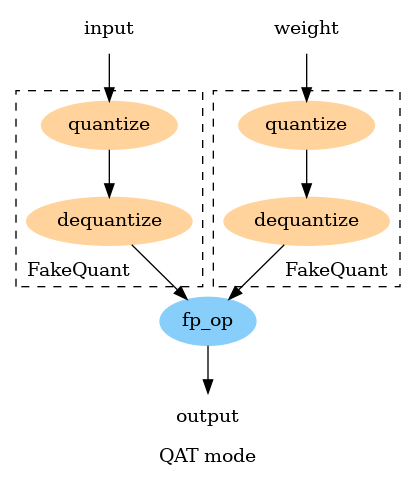

The ODML QAT mode is implemented using fake quantization, where quantized ops are emulated using floating-point ops and FakeQuant ops on the inputs. In FakeQuant op, the array is quantized and then dequantized immediately. The output is equivalent to the actual quantized output.

The OdmlQatProvider inserts FakeQuant op in the graph. OdmlQatProvider supports every op in the model. OdmlQatProvider is aware of the fusion pattern and will skip inserting FakeQuant between e.g. matmul and add.

To ensure all ops are quantized, the OdmlQatProvider has a strict mode that will raise an error if an unsupported op is detected.

LinenNNX

fp_model = SomeLinenModel(...)
provider = qwix.OdmlQatProvider(rules, strict=True)
qat_model = qwix.quantize_model(fp_model, provider)
# qat_model can be trained as usual.

ODML conversion

After QAT, the ODML conversion can be achieved by applying the OdmlConversionProvider to the model. The OdmlConversionProvider takes two more arguments, the params and the quant_stats, because it needs to calculate static scales for weights and activations during conversion.

LinenNNX

qat_variables = ...  # from QAT.
params = qat_variables['params']
quant_stats = qat_variables['quant_stats']

conversion_provider = qwix.OdmlConversionProvider(rules, params, quant_stats)
conversion_model = qwix.quantize_model(fp_model, conversion_provider)

The model can then be converted and exported using AI Edge JAX.

LinenNNX

import ai_edge_jax

litert_model = ai_edge_jax.convert(
    conversion_model.apply,
    {'params': params},
    (model_input,),
    _litert_converter_flags={'_experimental_strict_qdq': True},  # necessary for Qwix.
)

# Evaluate the LiteRT model on the host.
litert_result = litert_model(model_input)
# Export the LiteRT model.
litert_model.export('/tmp/litert_model.tflite')
