Training with Quantization (QAT/QT)

Training with Quantization (QAT/QT)#

Qwix supports two primary methods for training models with quantization: Quantization-Aware Training (QAT) and Quantized Training (QT). While related, they serve different purposes.

  • Quantization-Aware Training (QAT) aims to make the model aware of the precision loss that will occur during inference, which helps to recover the model quality degradation during PTQ. In Qwix, this is achieved by using low-precision integer operations in the forward pass, which introduces quantization noise, while using standard floating-point operations for the backward pass (via a Straight-Through Estimator). This allows the model’s weights to adapt to the noise, improving final quantized accuracy, while maintaining stable training dynamics with full-precision gradients. Compared to fake quantization – another common way of implementing QAT – Qwix’s QAT implementation produces the same numerics and is more performant.

  • Quantized Training (QT) goes a step further by performing computations using low-precision integer arithmetic in both the forward and backward passes. The operations themselves are quantized, providing a more performant usage of hardware behavior during the entire training process.

QAT only quantizes the forward pass, while QT quantizes both forward and backward passes.

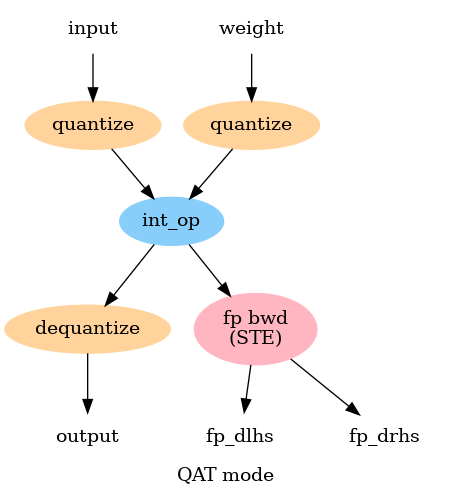

digraph { graph [label="QAT mode"] node [color="none" style="filled"] qw [label="quantize" color="burlywood1"] qx [label="quantize" color="burlywood1"] dq [label="dequantize" color="burlywood1"] bwd [label="fp bwd\n(STE)" color="lightpink"] int_op [label="int_op" color=lightskyblue] input -> qx -> int_op weight -> qw -> int_op int_op -> dq -> output // Backward pass computes float gradients int_op -> bwd -> {fp_dlhs, fp_drhs} }

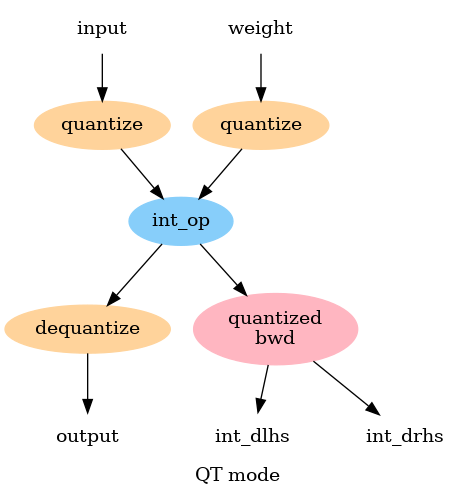

digraph { graph [label="QT mode"] node [color="none" style="filled"] qw [label="quantize" color="burlywood1"] qx [label="quantize" color="burlywood1"] dq [label="dequantize" color="burlywood1"] bwd [label="quantized\nbwd" color="lightpink"] int_op [label="int_op" color=lightskyblue] input -> qx -> int_op weight -> qw -> int_op int_op -> bwd -> {int_dlhs int_drhs} int_op -> dq -> output }

Training with Qwix#

In Qwix, both QAT and QT are conveniently handled by the qwix.QtProvider. The behavior is controlled by the bwd_qtype parameter in the qwix.QtRule.

  • To enable QT, set QtRule.bwd_qtype to a specific data type (e.g., 'int8').

  • To enable QAT, set QtRule.bwd_qtype to None (which is the default) or use QuantizationRule, which doesn’t expose bwd_qtype.

fp_model = SomeLinenModel(...)

# For Quantized Training (QT), set bwd_qtype.
qt_rules = [
    qwix.QtRule(
        weight_qtype='int8',
        act_qtype='int8',
        bwd_qtype='int8',
    )
]
qt_model = qwix.quantize_model(fp_model, qwix.QtProvider(qt_rules))

# For Quantization-Aware Training (QAT), leave bwd_qtype as None.
qat_rules = [
    qwix.QuantizationRule(
        weight_qtype='int8',
        act_qtype='int8',
    )
]
qat_model = qwix.quantize_model(fp_model, qwix.QtProvider(qat_rules))

Since QAT/QT models still consume floating-point weights, there’s no need to convert model variables and the checkpoints can be used interchangeably. All the existing training code should also just work.

Static-Range Quantization#

Static-range quantization adds extra complexity during QT because extra calibration data need to be collected. Those data are called quantization statistics and are stored in quant_stats collection in Linen models, or as QuantStat variables in NNX models.

rules = [
    qwix.QtRule(
        weight_qtype='int8',
        act_qtype='int8',
        act_static_scale=True,
    )
]
qt_model = qwix.quantize_model(model, qwix.QtProvider(rules))
qt_model.init(jax.random.key(0), model_input)['quant_stats']

The output will look like

{'Dense_0': {'dot_general0_lhs': {'count': Array(0, dtype=int32),
   'sum_of_absmax': Array([[0.]], dtype=float32)}},
 'Dense_1': {'dot_general0_lhs': {'count': Array(0, dtype=int32),
   'sum_of_absmax': Array([[0.]], dtype=float32)}}}

Standalone calibration process#

If QT is not used but SRQ is enabled, it’s necessary to perform a standalone calibration process to collect quantization statistics. This can happen when the training dataset is not available or there aren’t enough resources to do the training.

The standalone calibration process can be achieved by only running the forward pass of the QT model, where quantization statistics get updated.
